Extrude Hone

ECM CATHODES MATTERS

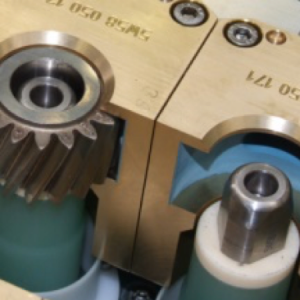

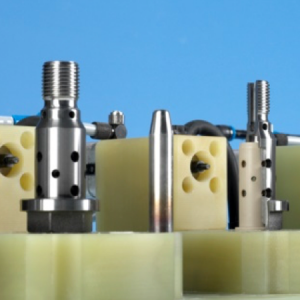

Cathodes by Extrude Hone

Whether you need delicate edge radiusing or burr removal, we will design the cathodes that match your requirements. Extrude Hone design and build simple to extremely high precision cathodes to solve your problem.

Cathodes may look like simple tools, but it’s in fact designed following science in order to control the dissolution of the material and to achieve the narrow tolerances in terms of geometry and roughness.

We do cathodes for our Extrude Hone tooling and we ensure aftermarket support with perfect repeatability. We provide cathodes for other OEM’s tooling as well.

Extrude Hone

TECHNOLOGY

GET CATHODES RIGHT

Proprietary developed simulation software to enhance cathode design and eliminate or reduce the need for test.

In house High Precision machines to ensure:

The highest accuracy and repeatability

The ability to have electrolyte channel inside the cathode for a more efficient Electrochemical process.

Quick turnaround

Additive Manufacturing capabilities for very intricate, impossible to conventionally machine, cathode shape.

Test equipment to ensure quick test turnaround or to support on demand specific development.

Cathode Availability Program to ensure uptime needs with the warehouse stock or fast track manufacturing on defined triggers.

CATHODE CAPABILITIES

CATHODE CAPABILITIES

Electrochemical Machining cathodes for both traditional and Dynamic ECM .

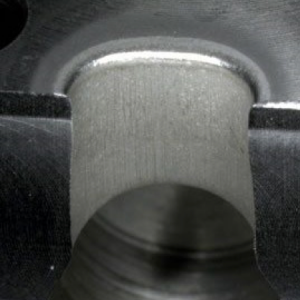

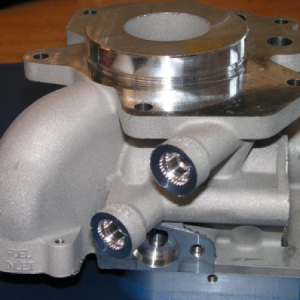

Deburring / Radiusing / Polishing /  Chamfering / Shaping.

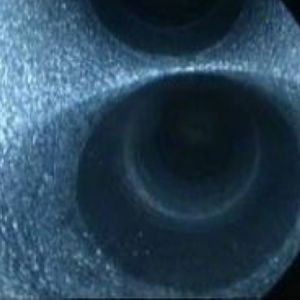

Surface improvement and cleanliness achievement.

Multiple part areas with processed with a single cathode.



Your Benefits



Access to simulation to save time and money compared to an extended feasibility phase.

Highest quality standards, control labs and skilled operators.

State of the art machines to guarantee superior accuracy.

Worldwide warehouse support for global players.

PERFECT PRODUCTION MATCH

PERFECT PRODUCTION MATCH

Cathode Availability Program Agreements

    Cathode Availability Program to ensure uptime needs with the warehouse stock or fast track manufacturing based on defined triggers.

    History of all cathodes design and modification made for you during the lifetime of your products and beyond.

    Automatic shipping – no further action required from your end

Optimized cathode life

  High Precision cathodes help to avoid short circuit and bring extended lifetime and better cost per part.

  Extrude Hone machines offer multiple built in controls to ensure the best utilization of the cathodes

***************

DOWNLOAD DATA SHEET CATHODE  MATTERS

Extrude Hone

VIDEO

Extrude Hone

INFO

Extrude Hone

BEYOND

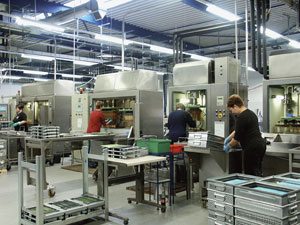

CONTRACT SHOP

surface solutions

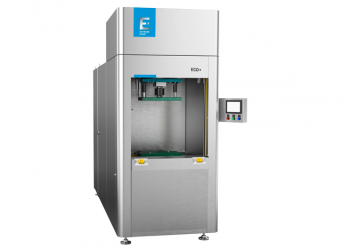

MACHINE

ECO+

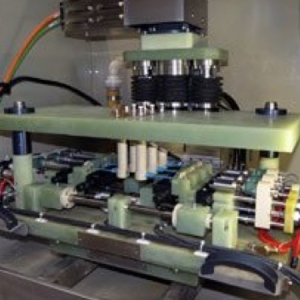

TOOLING

TOOLING

Tooling by Extrude Hone. Designed and manufactured by us for:

    Electrochemical Machining (ECM)

    Dynamic ECM

    Abrasive Flow Machining (AFM)

    MICROLFOW

    Thermal Deburring (TEM)

Decades of knowledge brings in speed and  efficiency

  Huge historic of thousands of application means we can gear up quickly to design a new tooling

• In house manufacturing by Extrude Hone process expert to ensure the perfect match with the equipment.

ANODE

ANODE

Anode by Extrude Hone. Designed and manufactured by us for:

    Electrochemical Machining (ECM)

    Dynamic ECM

Benefit from decades of experience and R&D efforts

  Simple traditional anode by Extrude Hone

  Hybrid Anode. This special anode combines the technical advantages of highly conductive materials with materials that are highly resistant to the damaging impact of the saline environment.

Various customer applications have already proven the enormous positive effect on the lifetime tooling cost by using this brand-new anode design.
