EXTRUDE HONE’s technology is an enhanced finishing solution for metal 3D printed parts, also referred to as Additive Layer Manufacturing (ALM) components. COOLPULSE™ technology solves the problem of rough surfaces by keeping the Freedom of Design for metal parts at once! This new technology allows complete surface treatment and sets a milestone in development of ECM (Electrochemical machining).
EXTRUDE HONE COOLPULSE™ PROCESS PROVIDES SOLUTIONS TO UNLOCK 3D PRINTED PARTS WITH DEMANDING SURFACE FINISHING

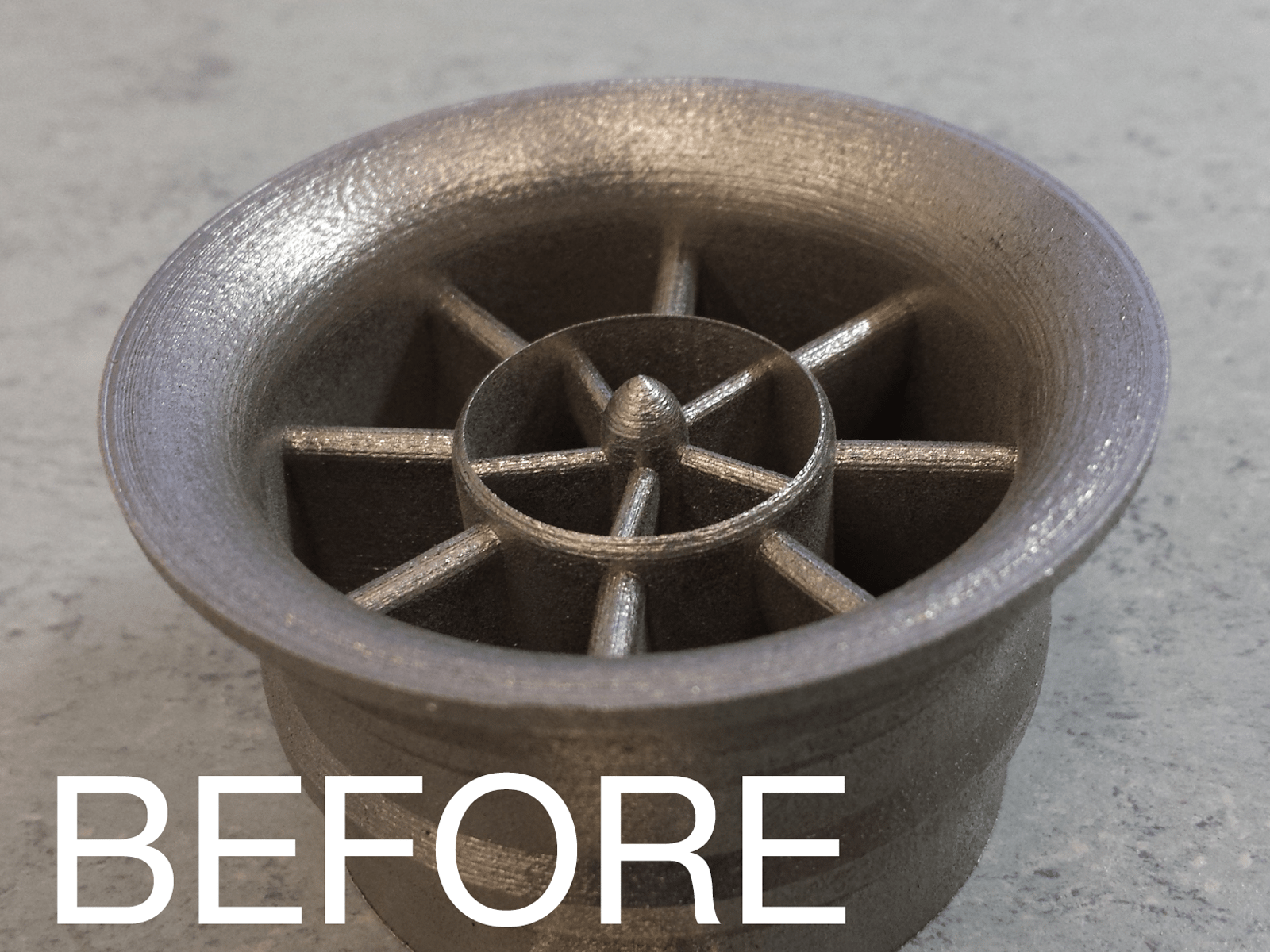

![COOLPULSE_BEFORE](https://www.extrudehone.com/wp-content/uploads/2020/10/COOLPULSE_BEFORE.png)

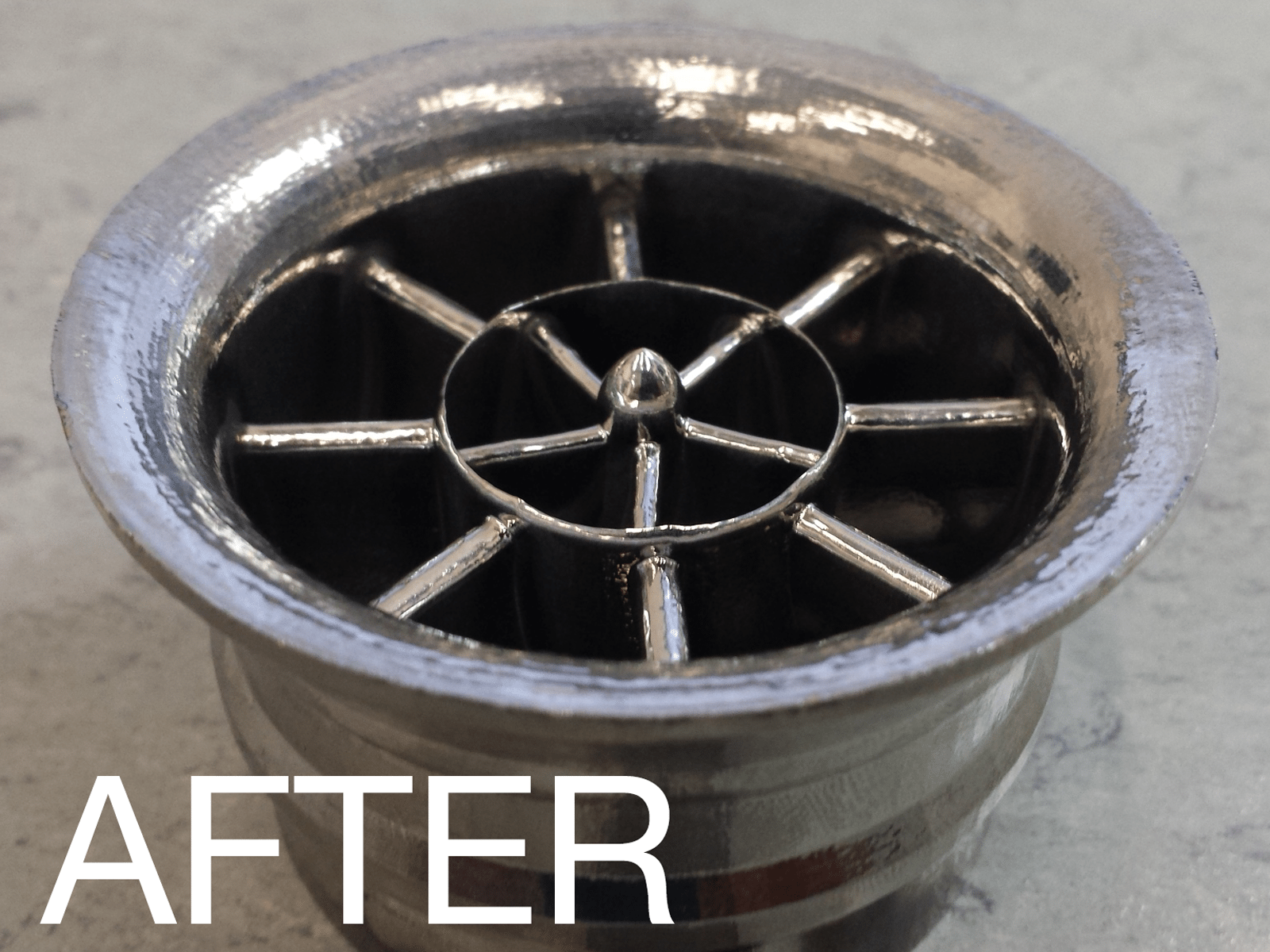

![COOLPULSE_After](https://www.extrudehone.com/wp-content/uploads/2020/10/COOLPULSE_After.png)

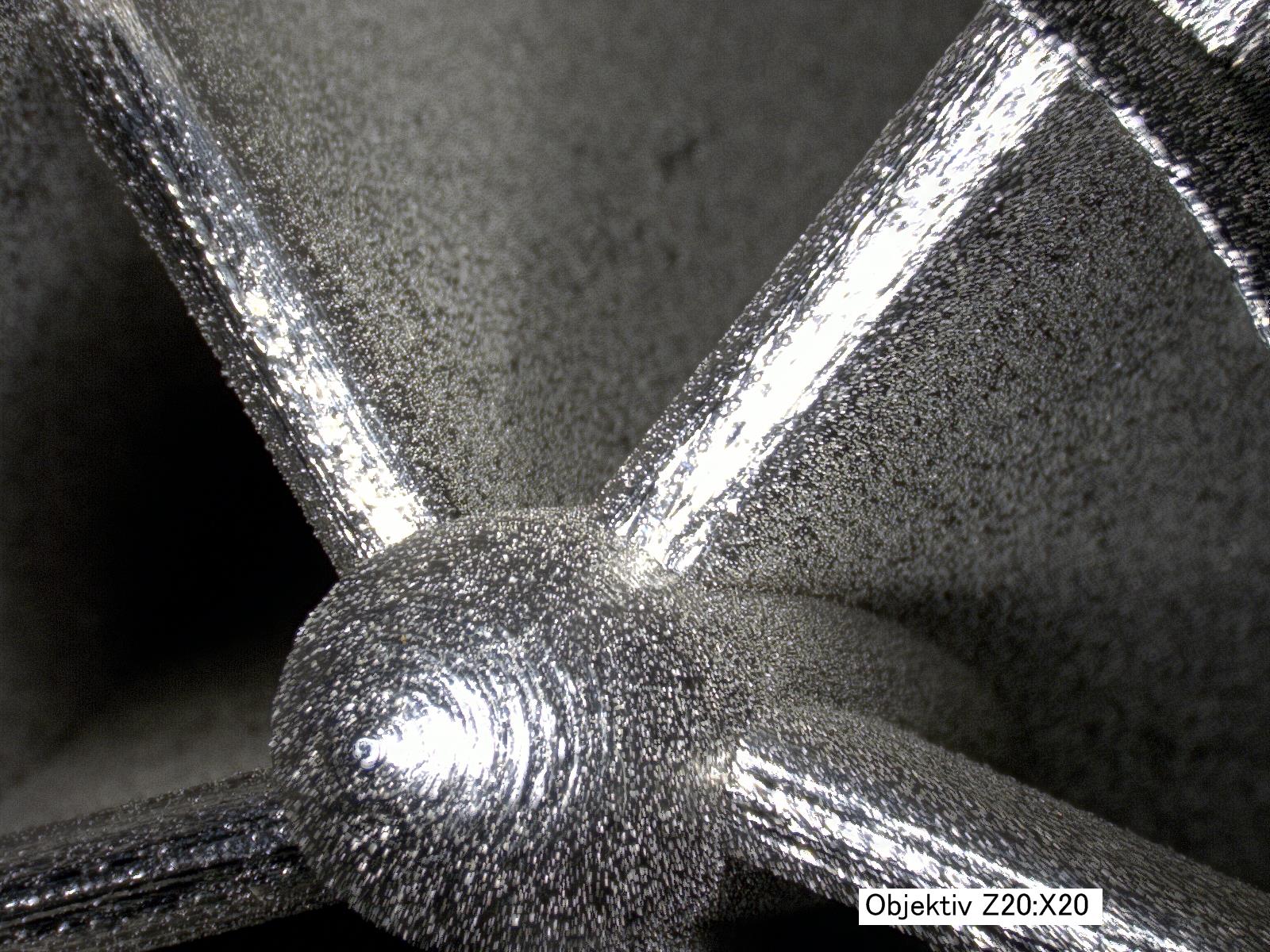

![Before_01](https://www.extrudehone.com/wp-content/uploads/2020/10/Before_01.jpg)

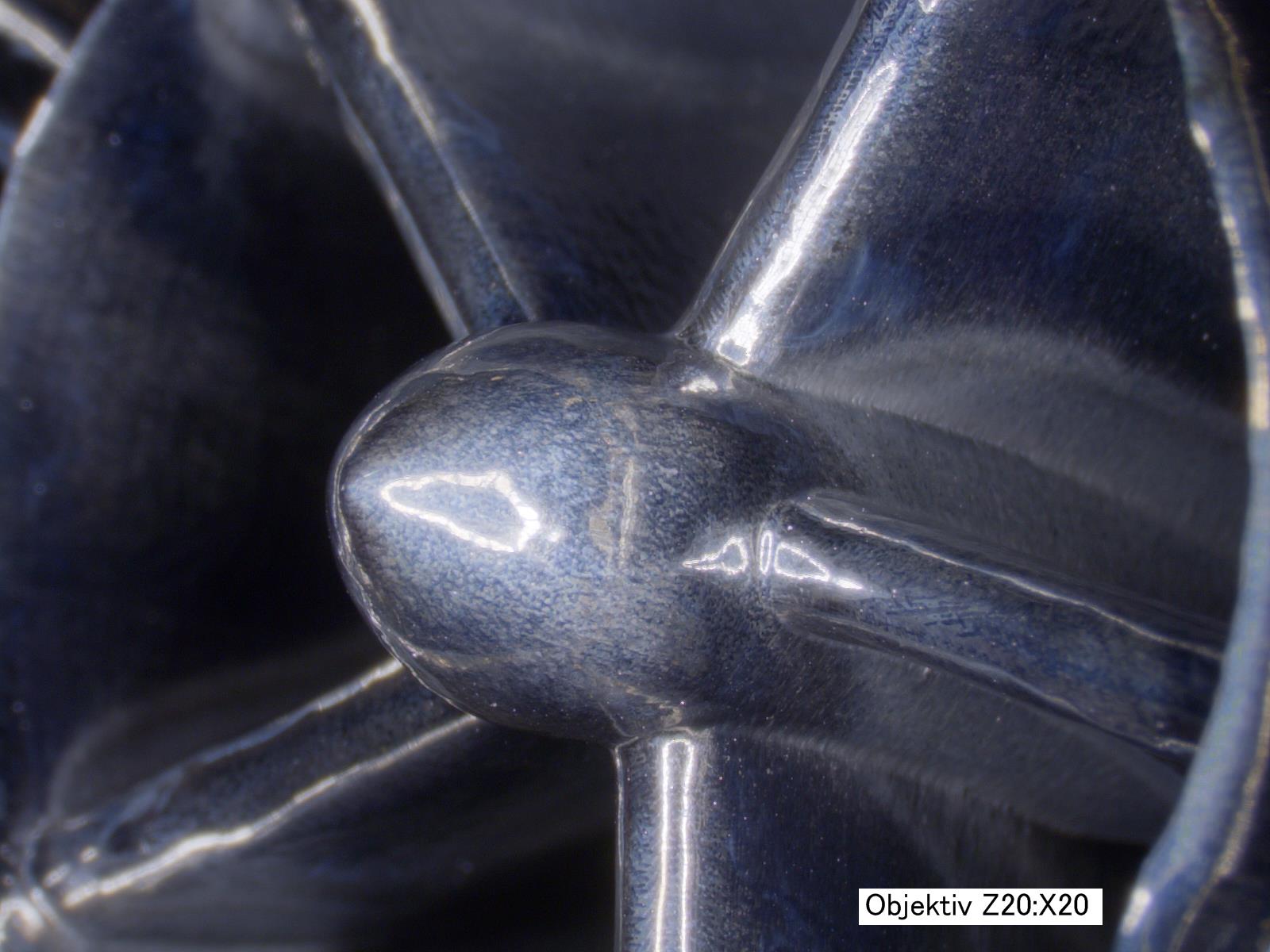

![After_01](https://www.extrudehone.com/wp-content/uploads/2020/10/After_01.jpg)
HOW THE COOLPULSE™ WORKS:
- COOLPULSE™ is an ECM Technology following the principles of anodic metal dissolution.
- The part is the anode and the tool is the cathode. There is a gap between the anode and the cathode which will be filled with electrolyte. • COOLPULSE™ uses a special, pH neutral, environmentally friendly, electrolyte which focuses the material removal on burr’s, edges & peaks.
- The current density is higher on burrs, peaks, & edges when compared to flat surfaces. The outcome is greater material removal in these areas resulting in a smoother surface.
- The material removed (hydroxides) during the process must be filtered out of the electrolyte stream to maintain constant electrolyte quality in the gap between the cathode and the workpiece.

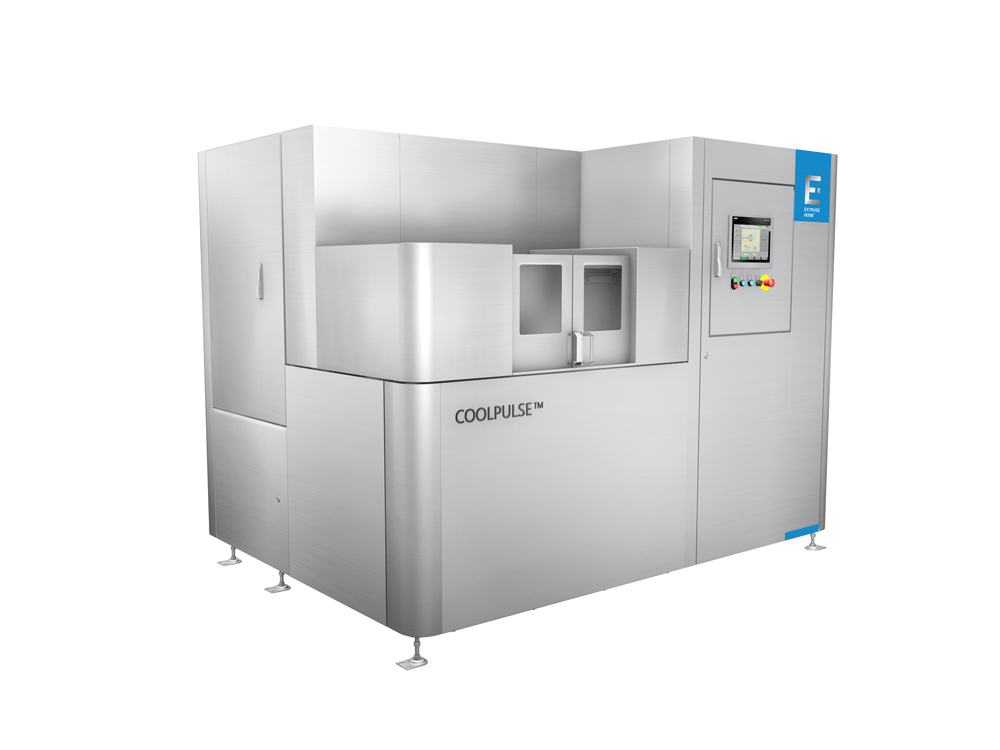

![ExtrudeHone_CoolPulse_Final_HighRes](https://www.extrudehone.com/wp-content/uploads/2020/10/ExtrudeHone_CoolPulse_Final_HighRes.png)
There are Two Different Ways to Apply COOLPULSE™ Technology:
Bath Technology:
- Part will be agitated between 2 cathode plates in the electrolyte bath.
- Concentration of current density is on peaks & edges.
- Used for external deburring & polishing applications.
Tooling Technology:
- Part & Cathode remain in static position.
- Cathode mirrors the part contours, which allows electrolyte to flow in the gap.
- Simultaneous machining of external & internal features is possible
DOWNLOAD COOLPULSE WHITEPAPER
What is different between COOLPULSE™ and standard ECM?
Although COOLPULSE™ follows the same ECM principles, there are some major differences between the two technologies:
- Uses a special electrolyte, invented to support a better and more steady distribution of the electrical field over the workpiece surface.
- Has a higher material removal rates than ECM.
- Allows for larger gap sizes between the workpiece and the tool.
- The machine base plate with the work piece, fixture and cathode mounted on it, completely submerges into the electrolyte for machining.
- Main focus of machining with COOLPULSE™ lays on suface finishing and less on deburring.
COOLPULSE™ Process – TOOLING
To meet the high degree of flexibility and short reaction times of the 3D PRINTING industry, EXTRUDE HONE® had redefined the way tools are designed.
- Complete tooling service which includes the design, optimization, and 3D printing of the cathodes
- Feasibility and application support
- 3D printing of the cathode with the part
- Remote application parameter upload
![image010-150x150](https://www.extrudehone.com/wp-content/uploads/2020/10/image010-150x150-1.jpg)
![image008-150x150](https://www.extrudehone.com/wp-content/uploads/2020/10/image008-150x150-1.jpg)
![image009-150x150](https://www.extrudehone.com/wp-content/uploads/2020/10/image009-150x150-1.jpg)
EXTRUDE HONE® CONNECT
EXTRUDE HONE® CONNECT offers access to the Extrude Hone world
- Direct loading of the parameter files for each new application
- Remote upgrade of the material package • Automatic machine software upgrade
- Full service monitoring • Support in commissioning, fault elimination, maintenance and service of the COOLPULSE™ system via internet connection
- Integrated VPN router in the ECM system
- Creates a defined surface structure at both the micro and macro level for the workpiece.
- Reasonable and controllable stock removal.
- Polishing effect on the surface internally and externally.
- Removes remaining defects from the support structure and surface.
- High current density on peaks and edges of the workpiece allows for consistent edge rounding.
- COOLPULSE™ finishes both internal / external surface simultaneously.
- Bath technology enables larger surface areas to be machined.
- Capable of rapid and cost effective tooling production by utilization of 3D printing technologies.
- Patented base plate allows easy setup. No wire connection to the parts required.
- Remote application parameters provided and uploaded by Extrude Hone.
- COOLPULSE™ uses pH neutral, environmentally friendly electrolyte.
