Used Thermal Deburring Machine

C250 TEM Machine

Fully rebuilt

Will fit 7”, 8”, 10” or 11” size chamber

5 stations machine

Additional Accessories available

12 months warranty

Specifications

Machine Clamping Pressure.250 Ton (2.2MN)
Machine Size (W x D x H)
Including exhaust blower
66.0 in x 162.0 in x 116 in
(1677mm x 4115mm x 2946mm
Transport Weight:
TEM Machine
Hydraulic Power Unit

15,000 lbs. (6,820 kg)
1,600 lbs. (728 kg)
Power Requirements
480 VAC, 3-phase, 60 Hz
Fuel Gas Types
Natural Gas or Grade 2.0 Bottled Methane (CH4) and Oxygen 99.5% Clean or Higher (O2)
Control and Valve Voltage
110 VAC / 24 VDC (Depending on unit)
Cooling Water Requirements:

Machine
Hydraulic Power Unit
72°F(22.2°C) Max / 62°F(16°C) Min
300 Micron Clean

0.5 in. NPT 2.5 gpm (11.4 Lpm), 50 psi (3.5 bar)
0.75 in. NPT 4 gpm (15.2 Lpm), 50 psi (3.5 bar)
Hydraulic Pump
20 gpm (76 Lpm) 1,600 psi (112 bar)
Hydraulic Fluid
100 gal (378 liter) Mobil DTE25 or equivalent
Lubrication System
Mobil XHP-222 or equivalent
Noise Levels
85 dBA Time Weighted Average

VALUES FOR GAS MIXTURE PRESSURES

MaterialNatural Gas Pressure
Steel8-20 bar (116-290 psi)
Cast Iron5-20 bar (73-290 psi)
Zinc5-10 bar (73-145 psi)
Aluminum5-10 bar (73-145 psi)
Brass8-25 bar (116-363 psi)

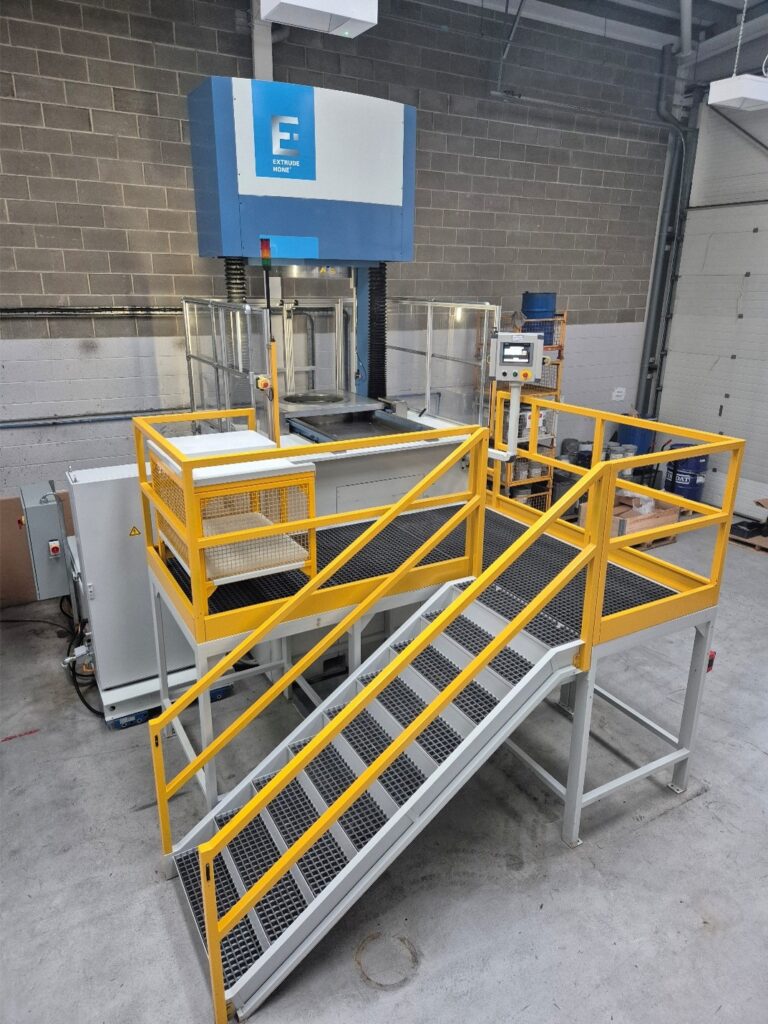

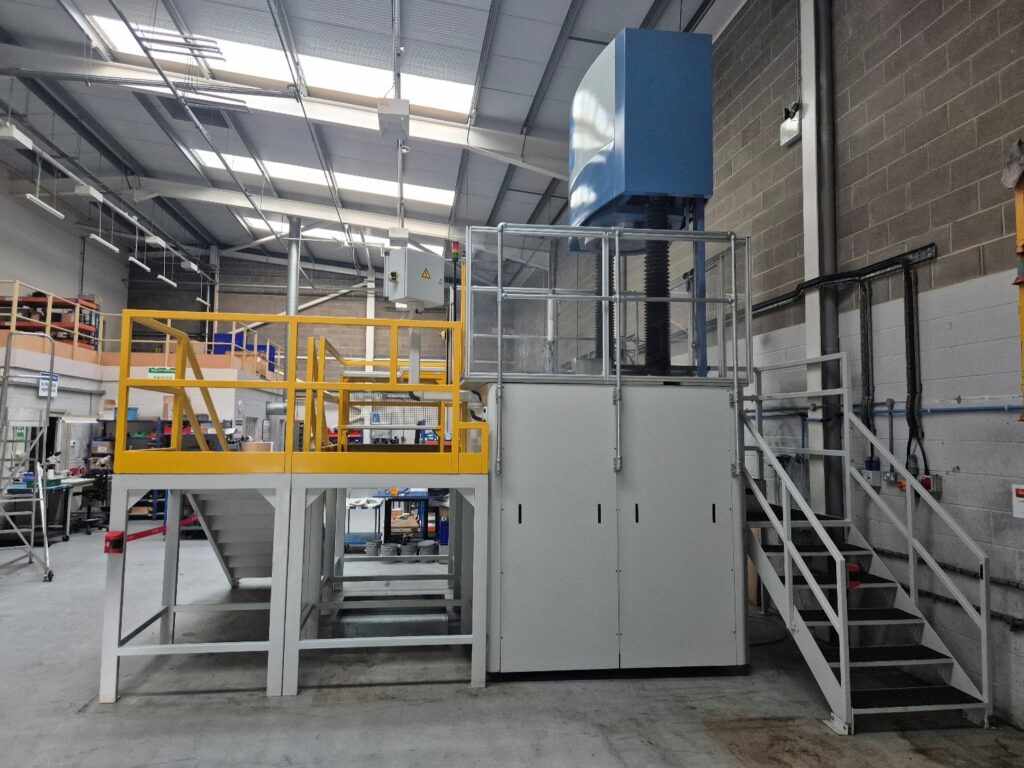

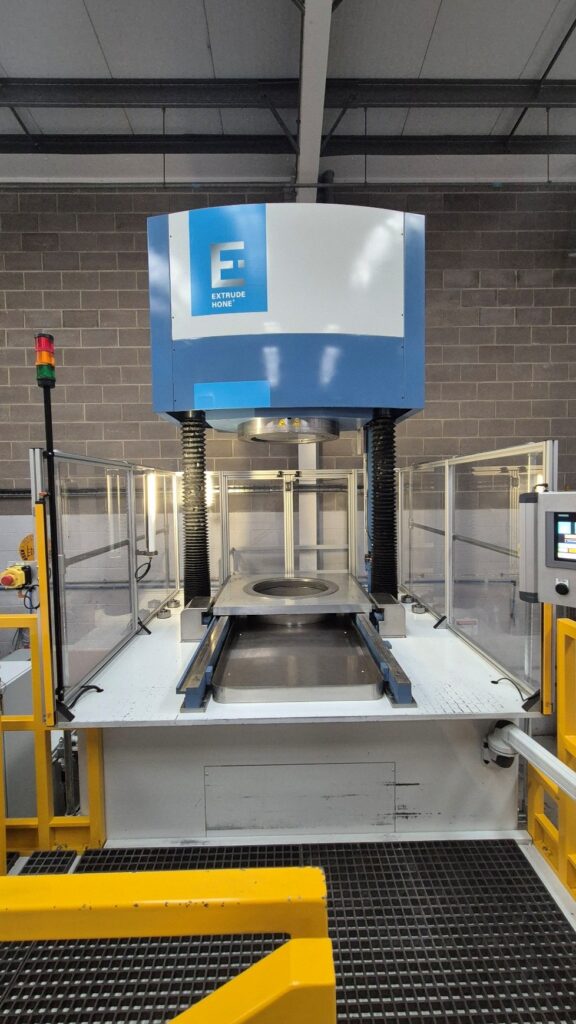

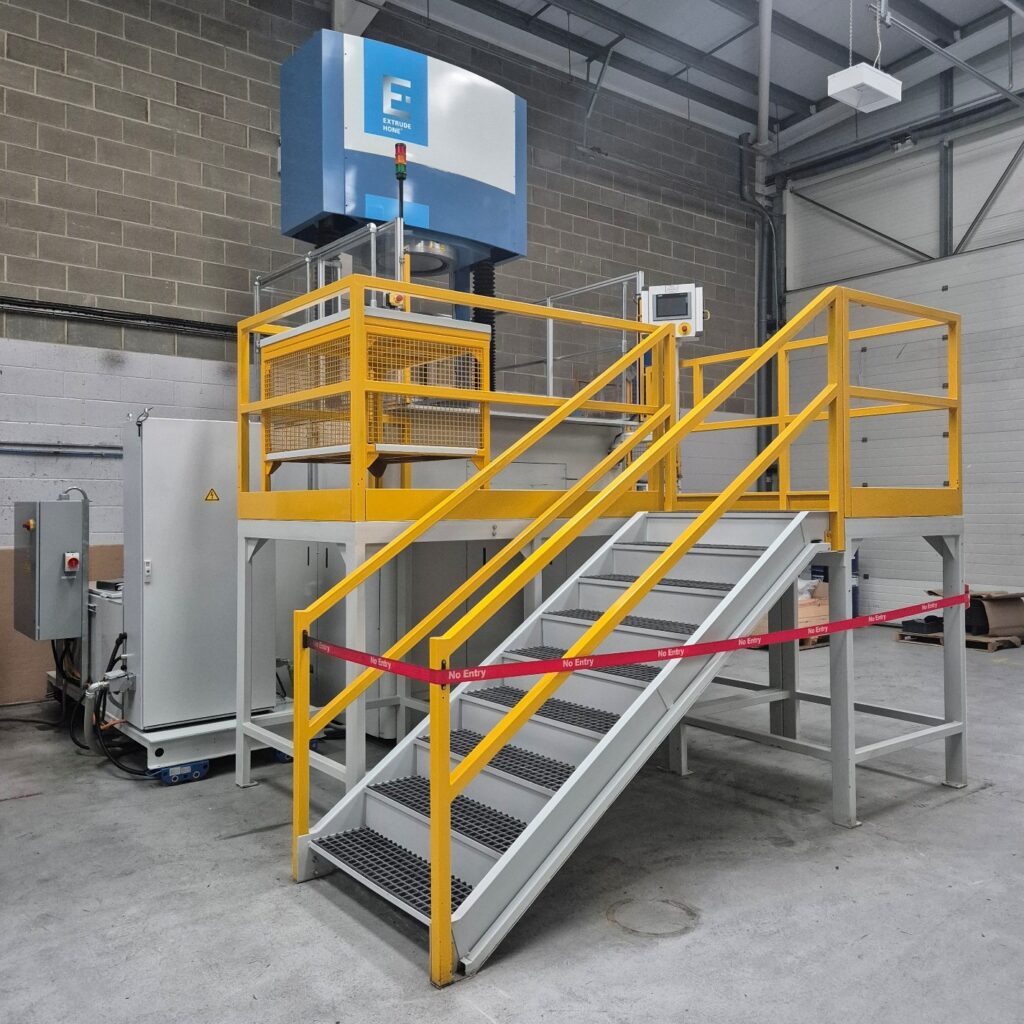

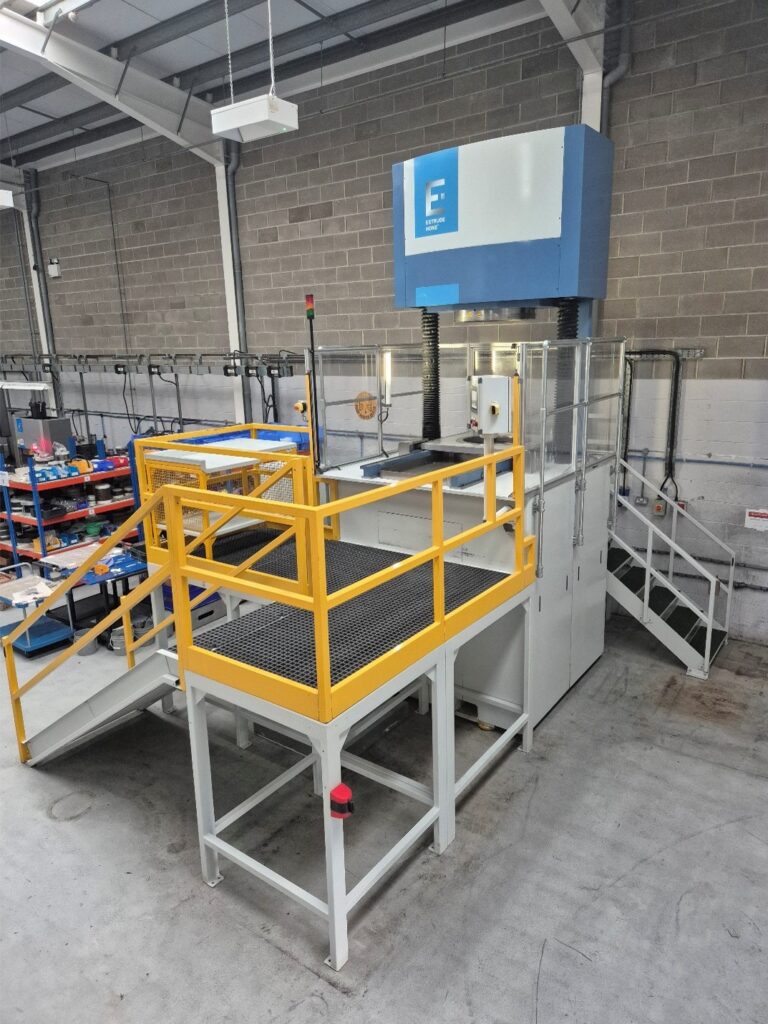

Used Abrasive Flow Machining Machine.

ECOFLOW 100 Machine

The ECOFLOW series machines are specifically designed for the small die maker or job shop owner.  It is the ideal economical alternative for processing carbide dies for precise and repeatable surface finish improvement as well as short-run polishing and radiusing of surfaces and edges of critical components.

ECOFLOW is the solution when there can be no compromise in edge and surface improvement conditioning.

Status new – show room machine

Model                                 ECOFLOW 100

Cylinder size                      100mm ( 3.8-inch)

Media Stroke                     250mm

Max Pressure                    140 bar (2000 psi)

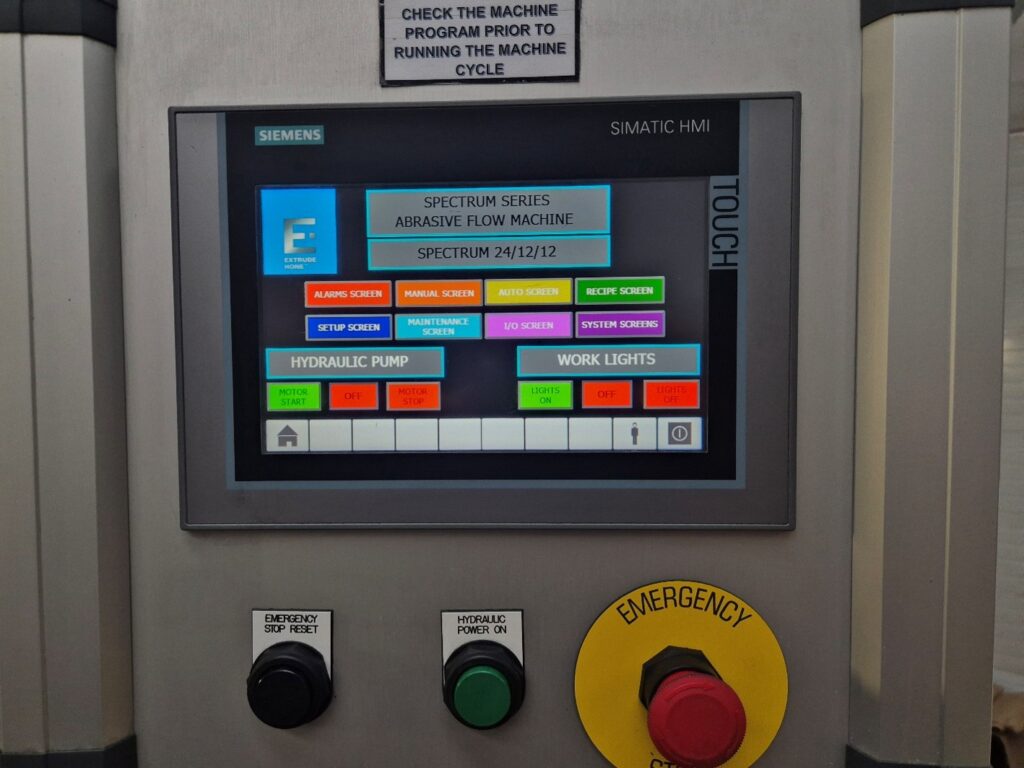

PLC/HMI                             Siemens PLC and A 5.7” Siemens touchscreen

Line Voltage                       406Vac

Used Thermal Deburring Machine

P400 SURFTRAN TEM Machine

“As it is”



Model                                 P400 10-003

Chamber size                    10-inch x 12-inch

Max Pressure                    300 psi (20 bar)

Cycles                                  Less than 220,000

PLC/HMI                             Mitsubishi

Line Voltage                       480Vac

FLA                                       42

The ram cylinder piston and seals were just replaced.

Machine comes with a good inventory of spare parts including:

1 new mixing block                                    5 rebuild kits

1 gas valve                                                  4 I/O modules for PLC

1 Vickers control valve                               8 Teflon Seals for chamber

8 Brass Seals for chamber                         1 Baldwin filter

2 Thermal Couples high heat                    1 lower chamber.
